The company promises that all sales products are A core, with seven days warranty, one year warranty and no warranty. We promise that every core and final product will be fully tested and shipped. The real battery manufacturer. Let you buy the rest assured, use the peace of mind. Welcome to the field inspection!

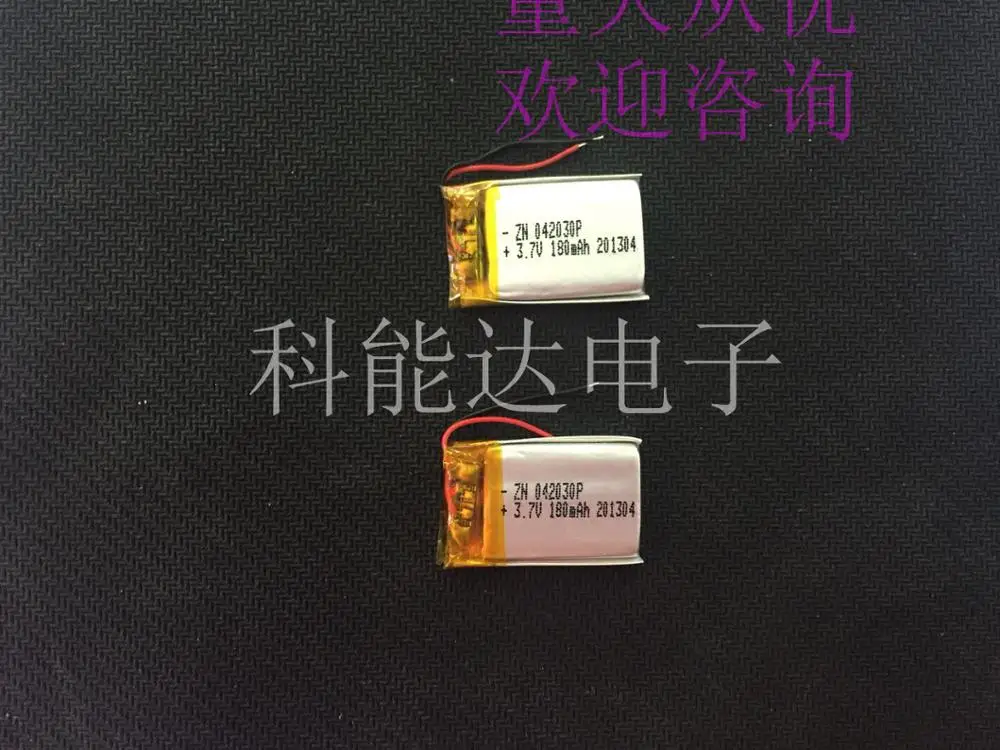

Real product:

Product parameters:

Warm Tip: This battery is a finished battery with protective panelIt has the functions of preventing overcharge, overdischarge, overcurrent and short circuit protection. After ordering, please contact customer service to confirm the specific product requirements (such as the length of the line, whether to add terminal line, whether to use inkjet) and delivery time.

Product model: 402030P

Nominal capacity: 180MAH

Product size: thick 4.0MM (+ 0.2MM) width 20MM (+ 0.5MM) * long 30MM (+ 0.5MM)

Rated voltage: 3.7V

Charge voltage: 4.2V

Charging temperature: -30 C ~ 40 degree C

Discharge temperature: -30 C ~ +60 C

Storage temperature: -20 C ~ +30 C

Charging current: standard charge: 0.5C, fast charge: 1.0C
Standard charging method: 0.5C CC (constant current) charge to 4.25V, then CV (constant voltage 4.2V) charge until charging current is less than 0.05C
Maximum charging current: 1C
Maximum discharge current: 1C

Protection of IC parameters: overcharge protection voltage 4.20V + 0.05V, over discharge protection voltage 2.7V + 0.1V, maximum current 3A.
Manufacturers direct 3.7V and 7.2V polymer lithium battery, can be customized to connect 7.4V, rich crystal protection board, MP3 MP4 MP5 GPS navigator, Bluetooth headset, small sound, small toys, security products, palm computer, e-book, recording pen, mobile power, handset audio and so on. Factory direct sale, can be customized according to the size of the customer.

The battery is recommended to be recharged with original charger. The charge time should not exceed 5 hours. If the defective charger is used or the charging time is too long, the battery will be damaged easily.

The first 3 charging should be put to 10% and then recharged to completely activate the battery. Do not recharge batteries with a small amount of electricity to avoid shortening the battery life and capacity.

If the machine doesn't work for a long time, please charge the battery at least once a month, so that the battery performance will be reduced (Yan Zhonghui damaged the battery).

Lithium-ion polymer battery knowledge:

The polymer battery is third generation of lithium batteries! This kind of battery is packed with reinforced aluminum plating, the vacuum sealing performance is good, the proper bending deformation will not be damaged! The standard voltage of the battery is 3.7V, as long as the size and the fit can be used! If your battery is bad, the same battery can choose the size. Similar batteries can be used as long as they can install the next machine.

Store address: A089, Huaqiang North International Electronics City, Futian District, Shenzhen. Contact Mr. Chen, telephone: 13662283360

Manufacturers can customize all kinds of 3.7V, 7.2V, 12V. lithium batteries, and the new Taiwan rich crystal protection board can be used to use the Japanese New Good protective board according to the customer's requirements, with the three line protection board with the recognition end and the temperature control three line protective plate, which can be customized according to the customer's size and the quantity is excellent.
