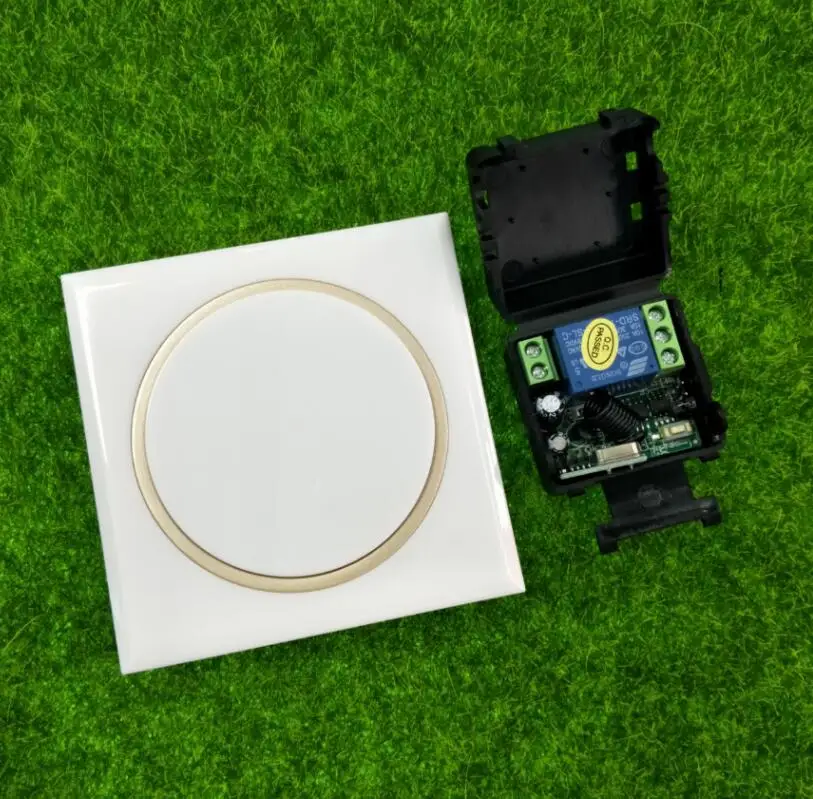

2018 new rf DC 12 v 1CH mini wireless remote control receiver transmitter wall switch Электроника - купить

Купить 2018 new rf DC 12 v 1CH mini wireless remote control receiver transmitter wall switch | Электроника

Specifications:

Operating Voltage: DC12V

Operating Current: ≤ 6Ma

Operating Frequency: 315,433 MHz(Frequency can be adjusted,

Operating Temperature: -40°C ~ +80°C

Receiver Sensitivity: ≥-105dBm

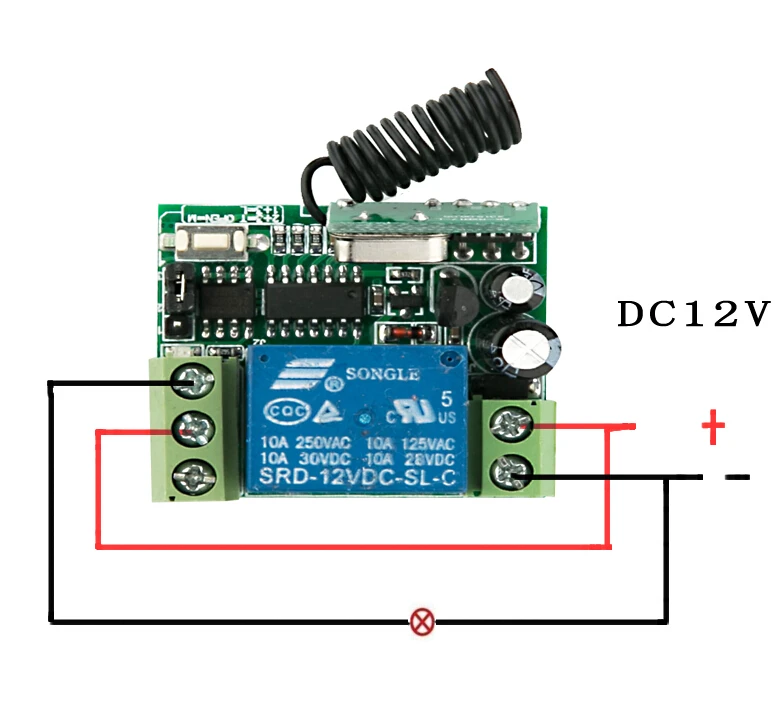

Output Voltage: AC / DC (optional)

Output Current: ≤ 10A

Code :Learning code .(jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched )

Size: 35MM*32MM*17MM ( Please note that, the mini size )

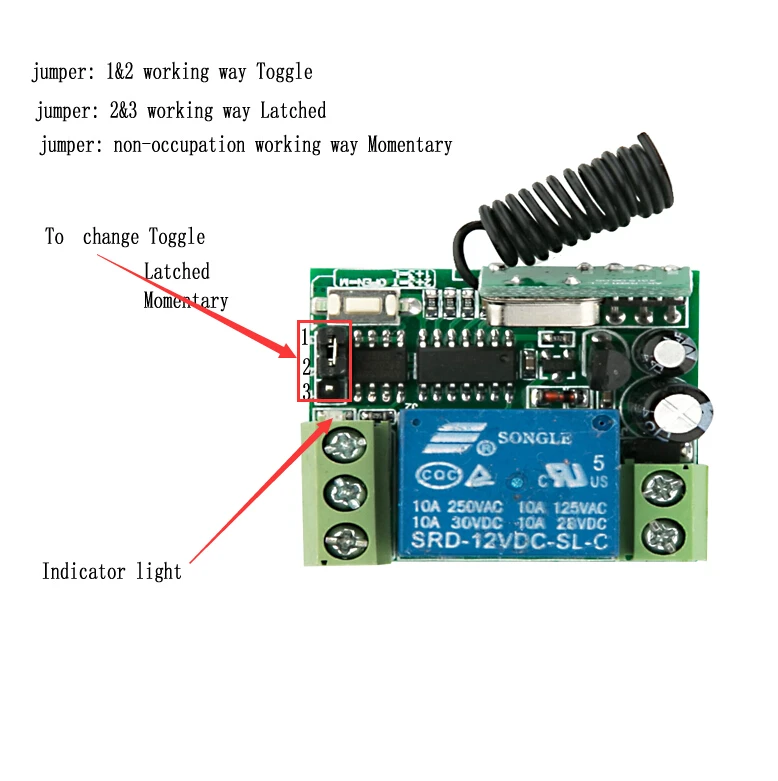

Output working way:

Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control

Inter-lock /Latched : press one button is working/ON, press another button is stop/OFF . ( one channel switch need 2 buttons remote control )

Learning Method:

Press the learning button3 seconds, the indicator light off .then you press any buttons of the remote control to transmit signal . it means studying successfully when the indicator flash 3 times until the indicator light on.

Remove code:

press the learning button about 8 seconds, the indicator turn on to off to on, it means the information that you keep have been removed successfully .

Package Include:

1x Receiver

1x Transmitter
