Product Description

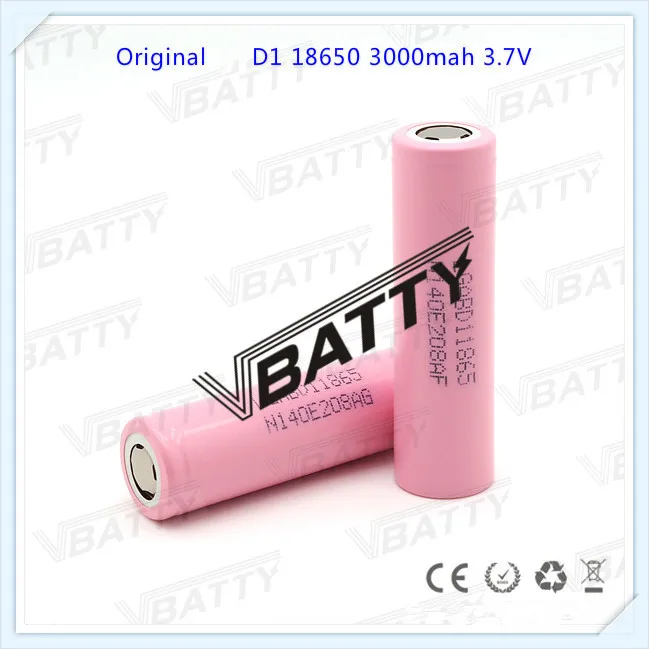

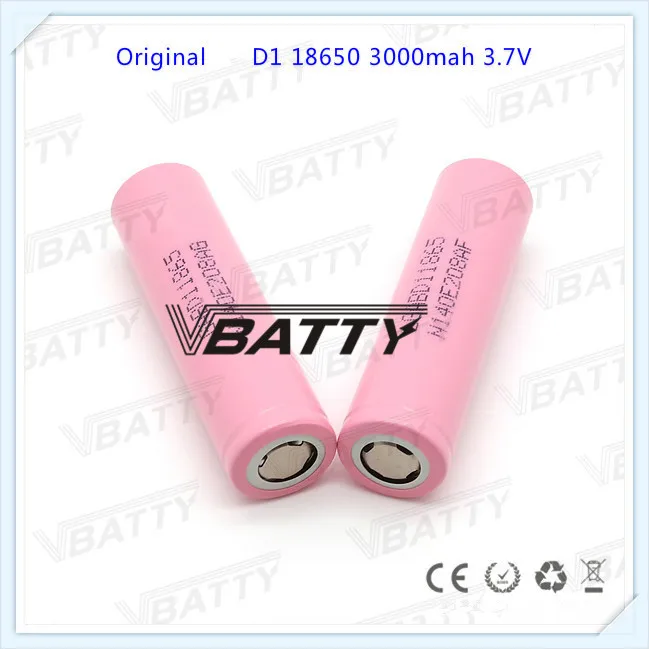

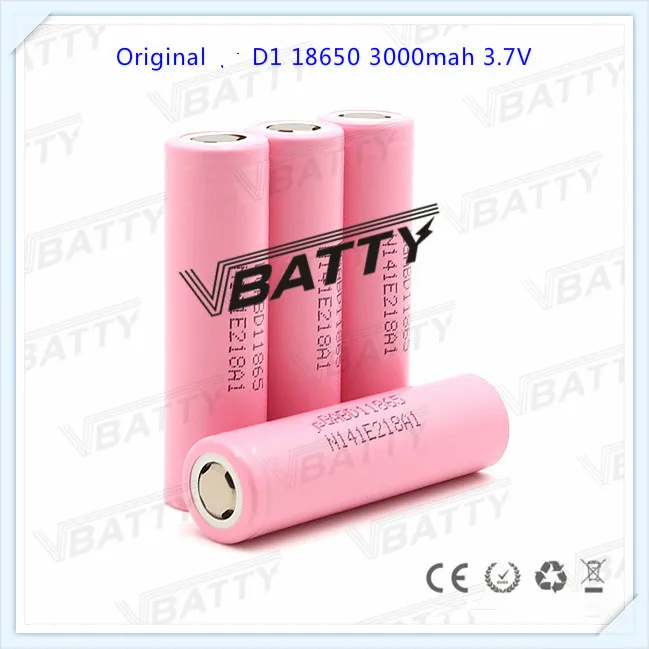

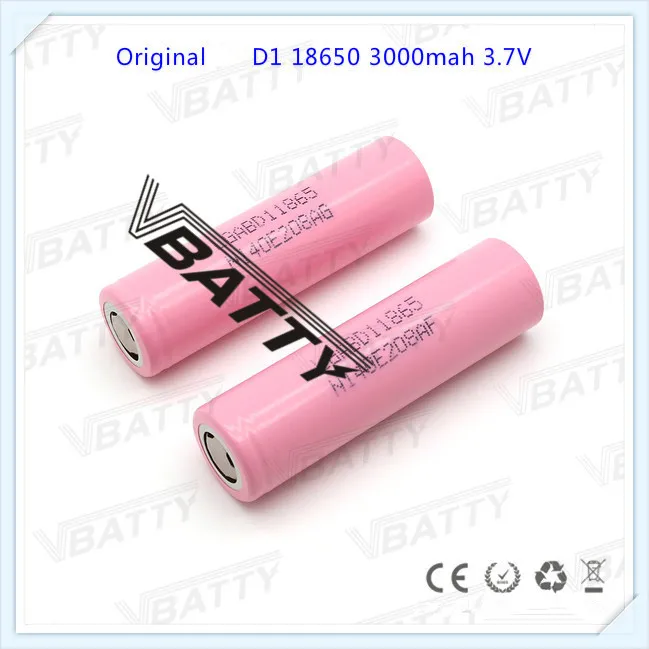

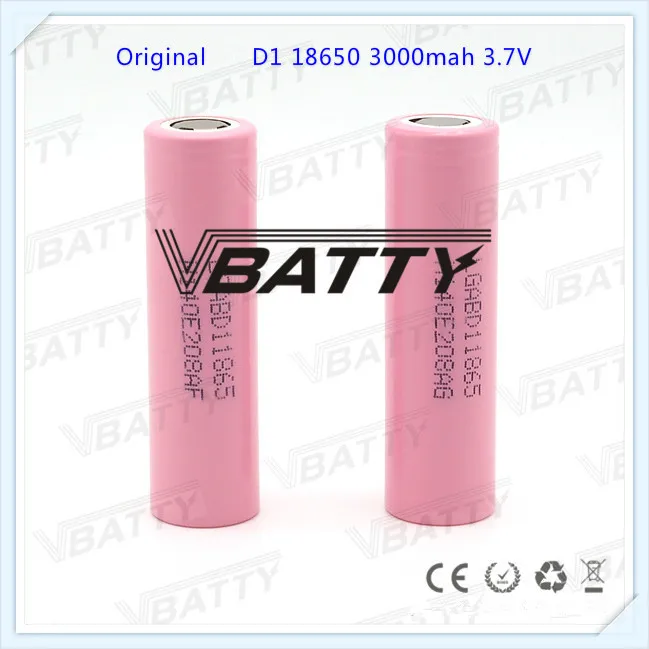

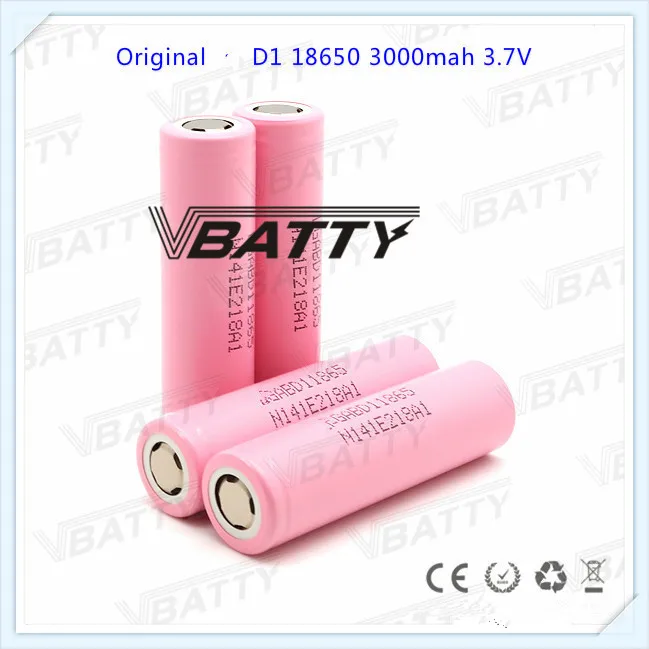

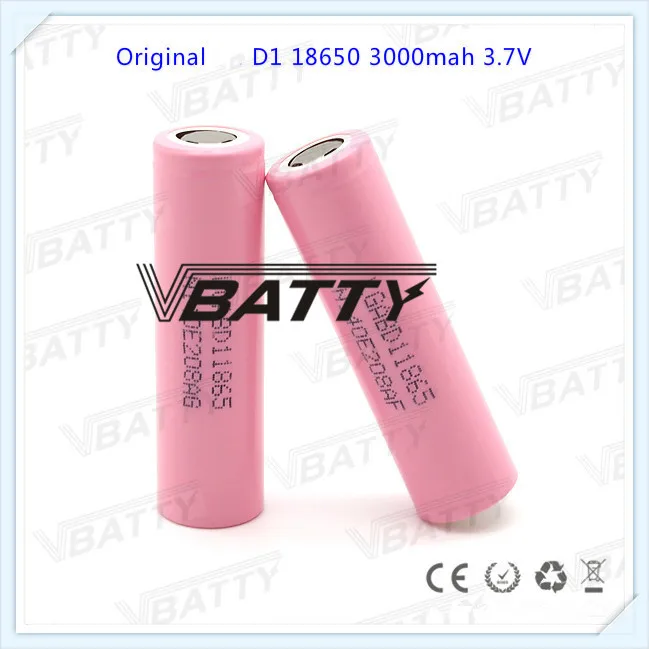

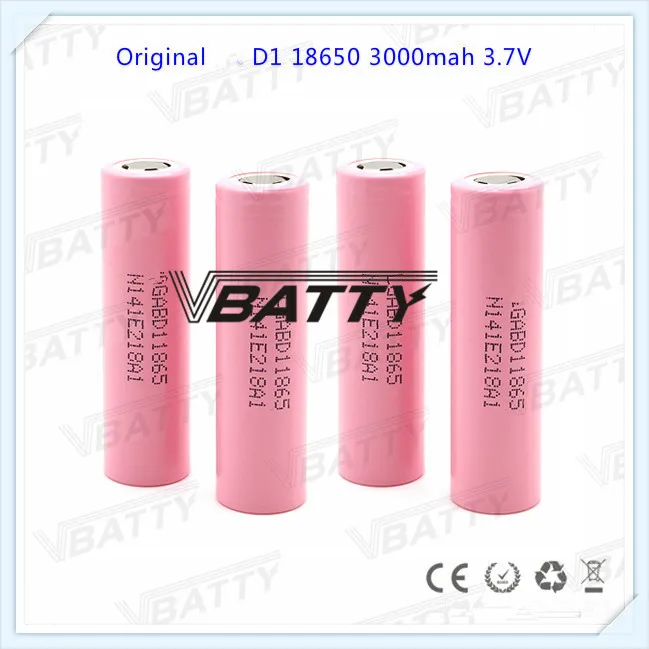

Original for LG D1 18650 3000mah 3.7V battery Li-ion 18650 ic cj 18650 18650s aaa18650 protable18650 coolfire 18650 (1 pc)

1. General Information

1.1 Scope This product specification defines the requirements of the rechargeable lithium ion battery to be supplied to the Customer by LG Chem. 1.2 Application: Note PC 1.3 Product classification: Cylindrical rechargeable lithium ion battery 1.4 Model name: ICR18650D1 2. Nominal Specification Nominal 3000mAh / 11.20 Wh(C nom ) 2.1 Capacity Std. charge / discharge Minimum 2900mAh 2.2 Nominal Voltage Average 3.75V Constant current 0.5C (1450mA) Constant voltage 4.35V 2.3 Standard Charge(Refer to 4.1.1) End current(Cut off) 50mA 2.4 Max. Charge Voltage 4.35 ± 0.05V 2.5 Max. Charge Current 1.0C (2900mA) Constant current 0.2C (580mA) 2.6 Standard Discharge (Refer to 4.1.2) End voltage(Cut off) 3.0V -20 ~ 5 ℃ 0.5C(1450mA) 5 ~ 45 ℃ 2.0C(5800mA) 2.7 Max. Discharge Current 45 ~ 60 ℃ 1.5C(4350mA) 2.8 Weight Approx. Max. 48.5 g Charge 0 ~ 45 ℃ 2.9 Operating Temperature Discharge -20 ~ 60 1 month -20 ~ 60 3 month -20 ~ 45 ℃ 2.10 Storage Temperature(for shipping state) 1 year -20 ~ 20 ℃ 3. Appearance and Dimension 3.1 Appearance There shall be no such defects as deep scratch, crack, rust, discoloration or leakage, which may adversely affect the commercial value of the cell. 3.2 Dimension Diameter : 18.29 ± 0.11 mm Diameter is defined as the largest data value measured on the "A" area of a cylindrical cell Height : ≤ 65.05 mm
