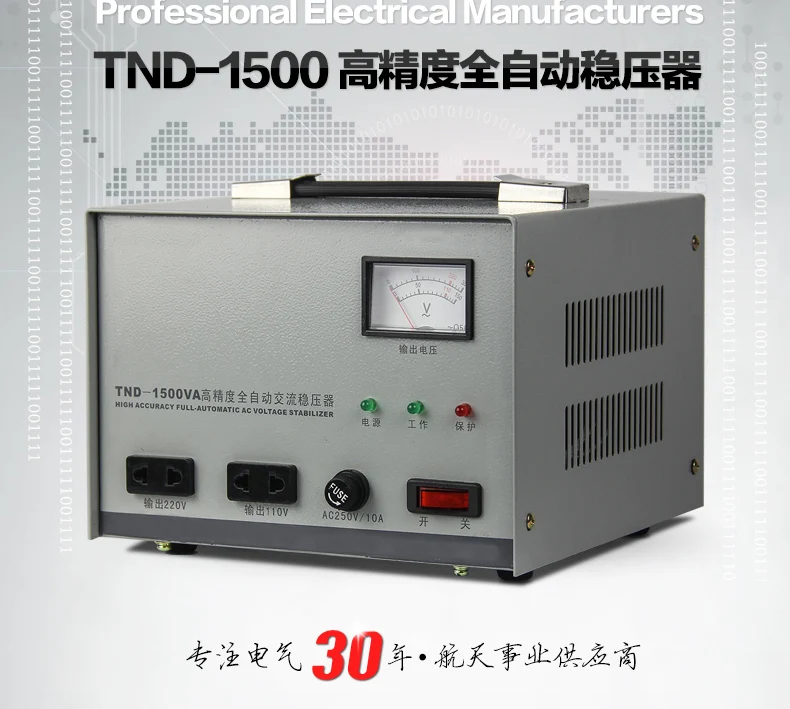

Single phase voltage stabilizer TND-1.5KVA 1.5KW household refrigerator PC 1500W dual output 110V&220V high accuracy Обустройство - купить

Product Description

Apply to families, factories, schools, industrial and mining
enterprises, scientific research units, laboratories, etc.

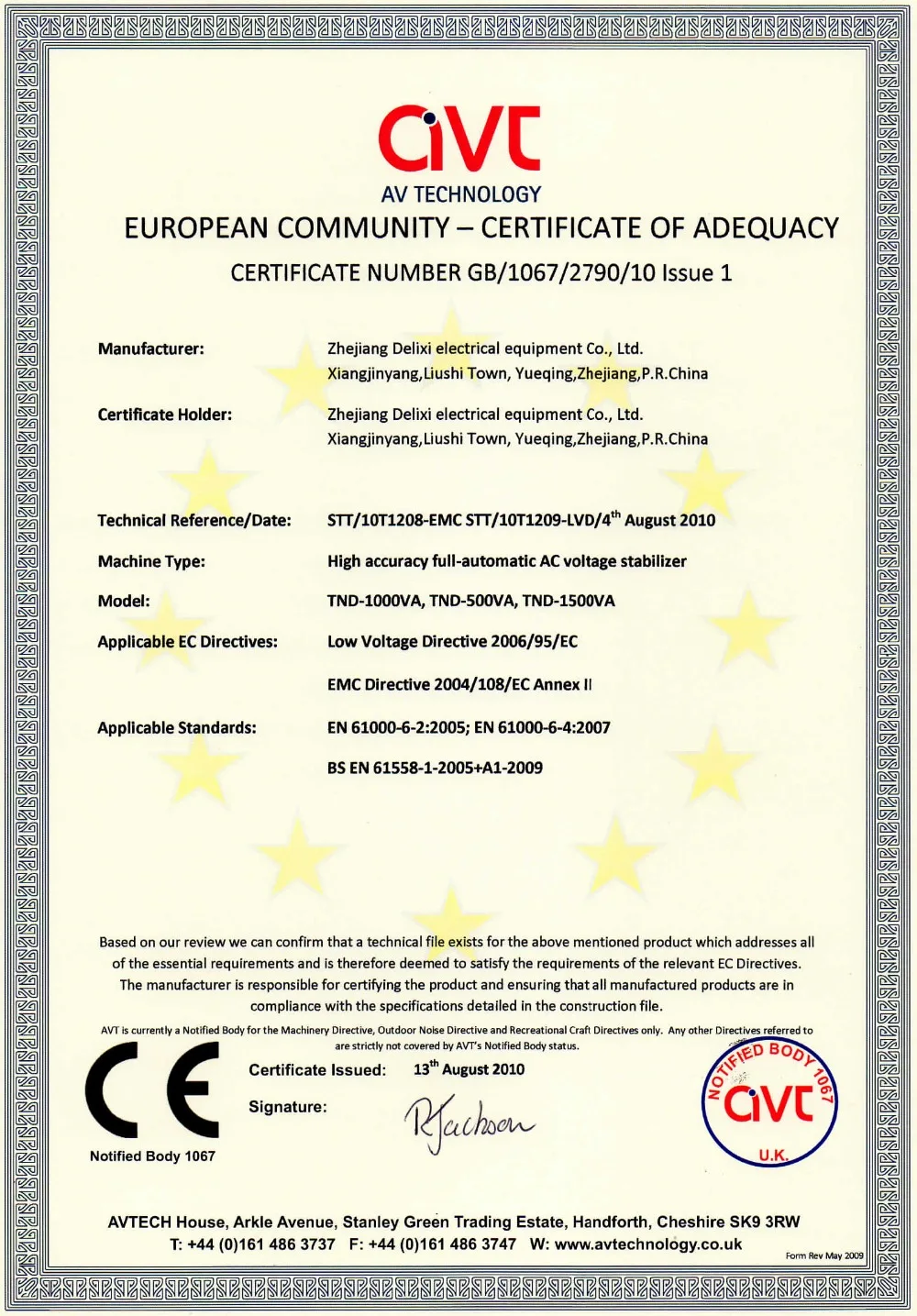

Certificate

CQC

Standard

JB/T 10089

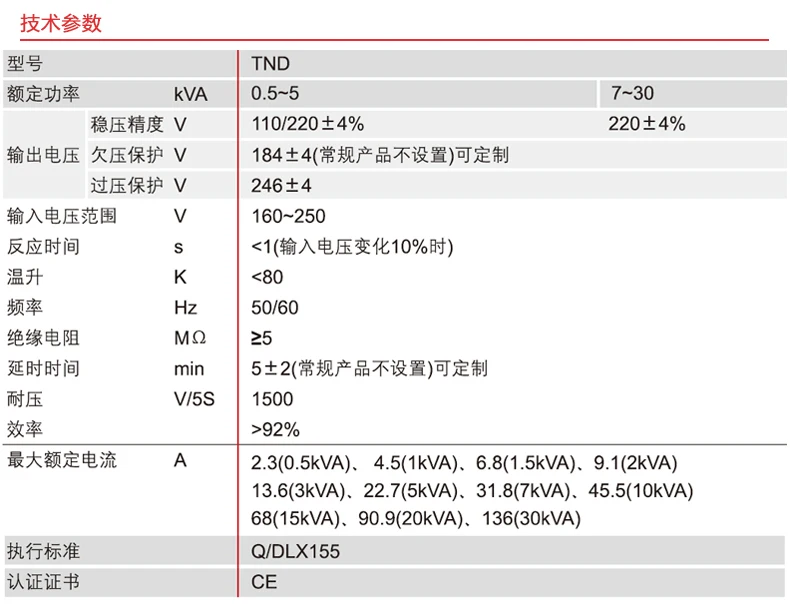

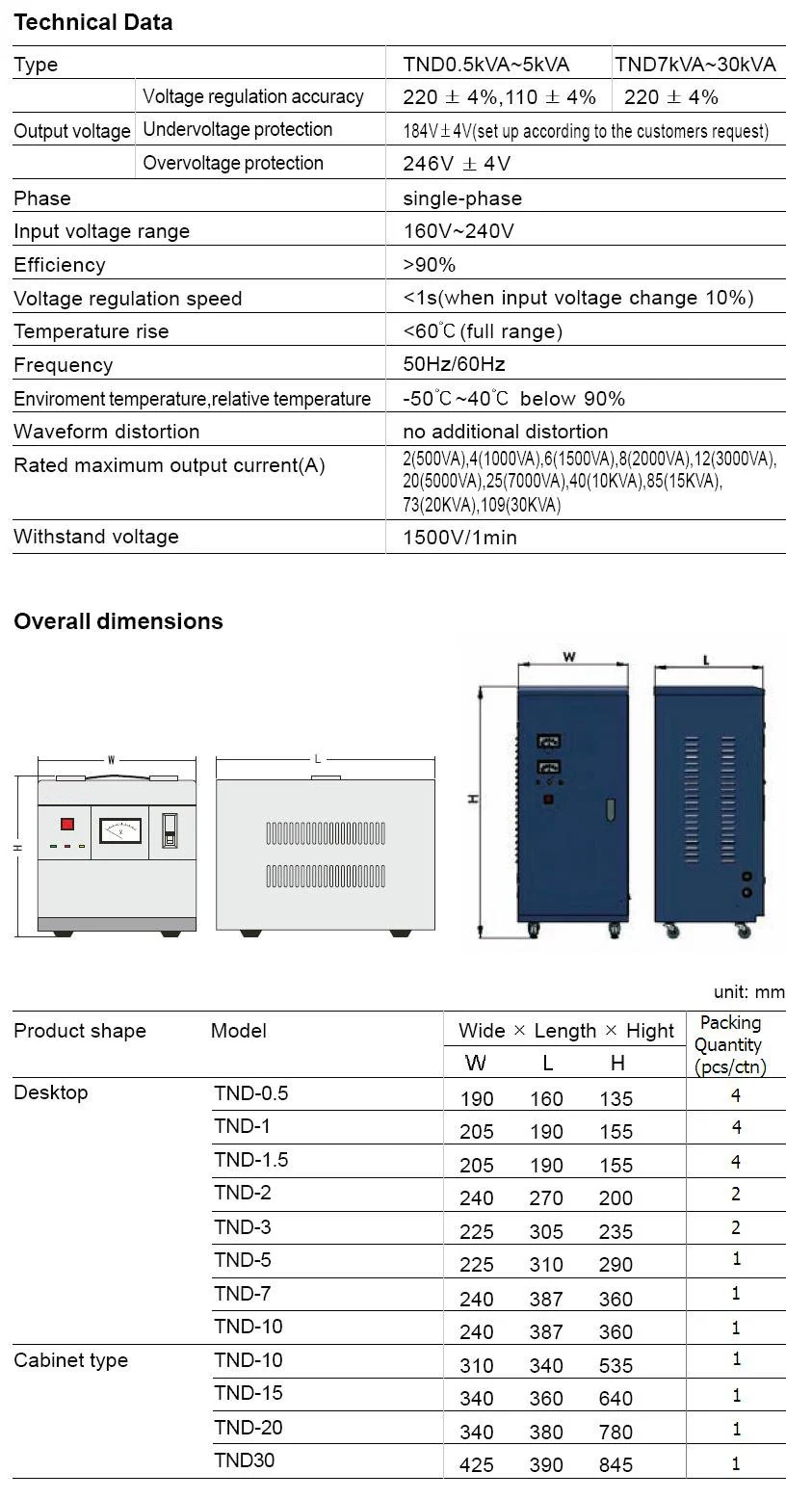

Technical parameters

See the table below

Features

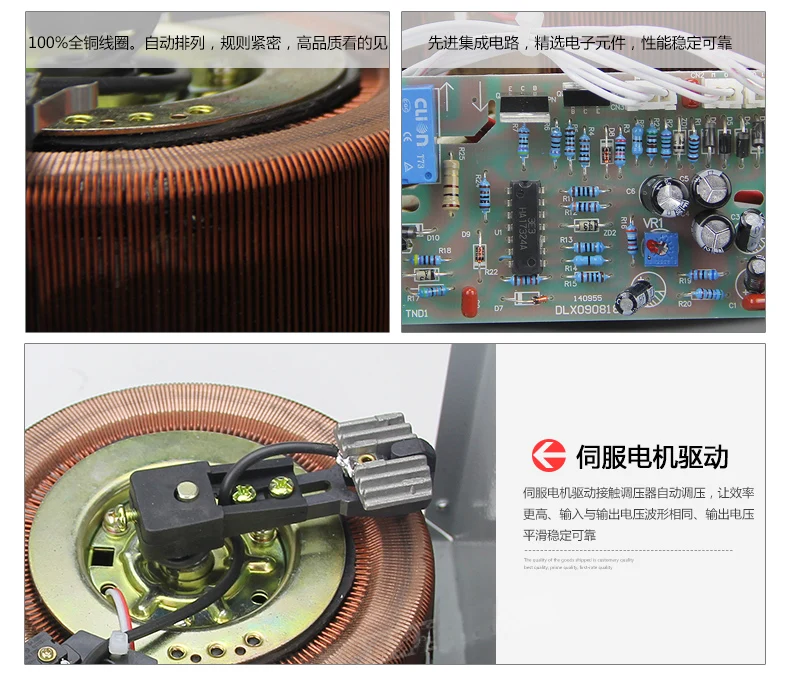

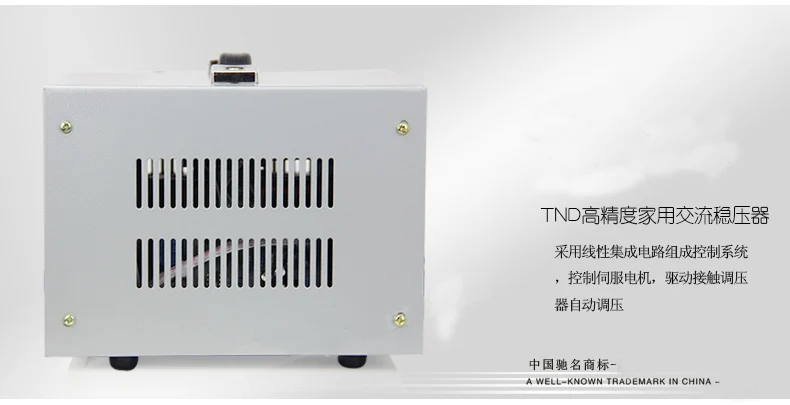

Linear integrated circuits group make up control system control motor control,driven Contact automatic voltage regulator,and it
can Delayed, overvoltage, undervoltage and overcurrent
protection .

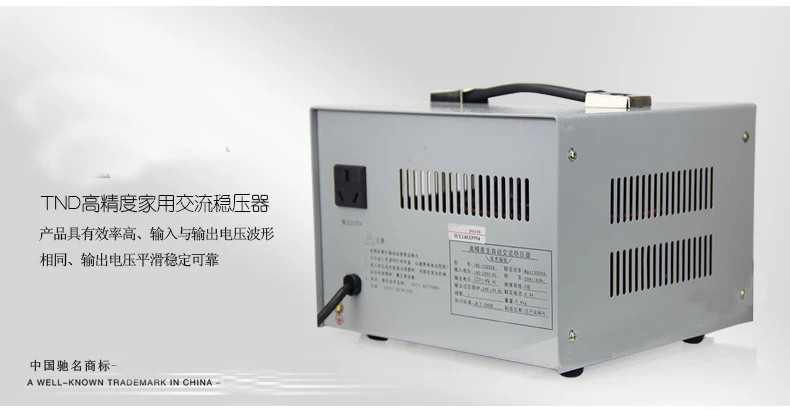

The product with high efficiency, input and output voltage
waveform of the same stable and reliable output voltage.

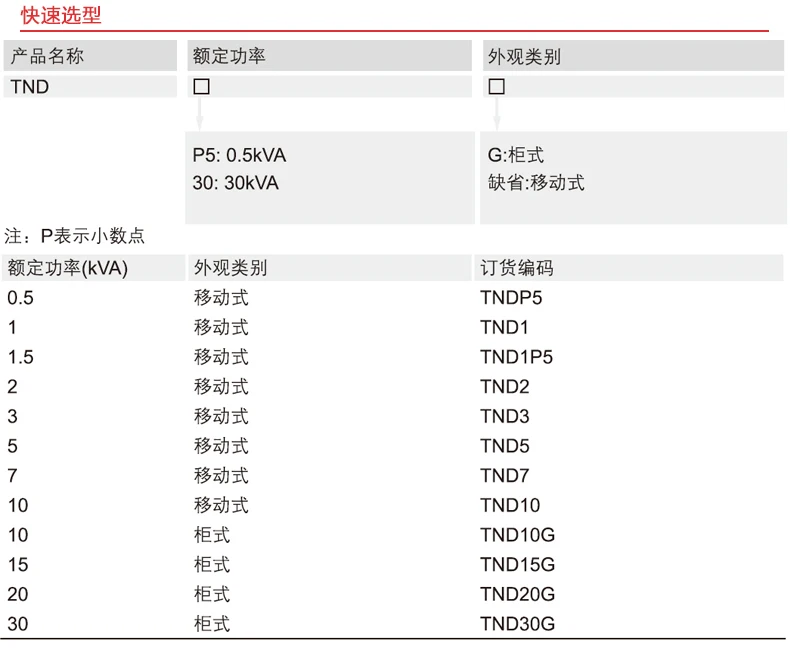

Type

TND

KVA

0.5~5

7~30

Output voltage

Volatage regulation
accuracy V

220±4%,110±4%

220±4%

Undervolatage protection V

184±4(set up according to the customers
request)

Overvoltage protection V

246±4

Input voltage V

160~240

Voltage regulation speed s

1(when input voltage change 10%)

Temperature rise K

max 60

Frequency Hz

50/60

Insulation Resistance MΩ

≥5

Delay time min

5±2(set up according to the customers request)

Withstand voltage V/1min

1500

Efficiency

min 90%

Rated maximum output current A

2(0.5KVA), 4(1KVA),6(1.5KVA),8(2KVA)

12(3KVA),20(5KVA),25(7KVA),40(10KVA)

85(15KVA),73(20KVA),109(30KVA)
