Multifunction Digital 1channel Video/2way Audio(2in & 2 out)/ R422 & 232 Data Optical Media Converter

1Pair (Transmitter & Receiver)

Customization is available, if you have specail request, Contact us.

Fast Delivery by FedEx/DHL/EMS

Overview:

This model is Multi-Service digital Video/Audio/Data Optical media converter with 1 Ch Video (BNC) + 2 ways Audio (RCA,2in 2out)+ RS422 (Bi-directional data)+RS232 (Bi-directional data), specific parameters are as follows:

1) Video Technical parameters:

l Video Interface: 1 channel

l Video Interface Type: BNC

l Video Input / Output Impedance: 75 ohms (unbalanced)

l Video Input / Output voltage: Typical 1Vp-p (peak - peak), the largest 1.2Vp-p

l Video Bandwidth: 10MHz

l Video Sampling: 15MHz high-speed sampling

l Video digital bits wide: 8/10/12 bits (bits)

l Differential gain: (10% -90% APL) DG <1% (typical)

l Differential phase: (10% -90% APL) DP <0.8 (typ)

l Field tilt: <0.5%

l Video SNR (weighted): S / N≥70Db (maximum optical link loss)

2) Audio technology parameters:

l Audio Interface number:2 ways (2in 2out)

l Interface terminal: Industrial terminals, audio RCA

l Audio input / output level typical: 0dBm

l Audio input / output impedance: 600 ohms (balanced / unbalanced)

l Audio Input / Output voltage: 0 ~ 2Vp-p (peak - peak)

l Audio Bandwidth: 20MHz ~ 20KHz

l Sampling rate: 48.6K

l Nonlinear distortion factor: ≤1%

l Audio SNR (weighted): S / N≥85dB

3) Data parameters:

l Data Interface Number: RS-422 bi-directional data+RS-232 bi-directional data

l Property Interface: Industrial terminals (standard)

l Interface signals: RS422 (4-wires),RS232 (3-wires)

4) the transmission fiber optic

l Multimode: 50/125 62.5 / 125 100 / 140um

l Single-mode: 8.3 / 125 8.7 / 125 9/125 10 / 125um

5) Transmission distance

l Multimode: 0 ~ 2 km

l Single-mode: 0 ~ 20 km

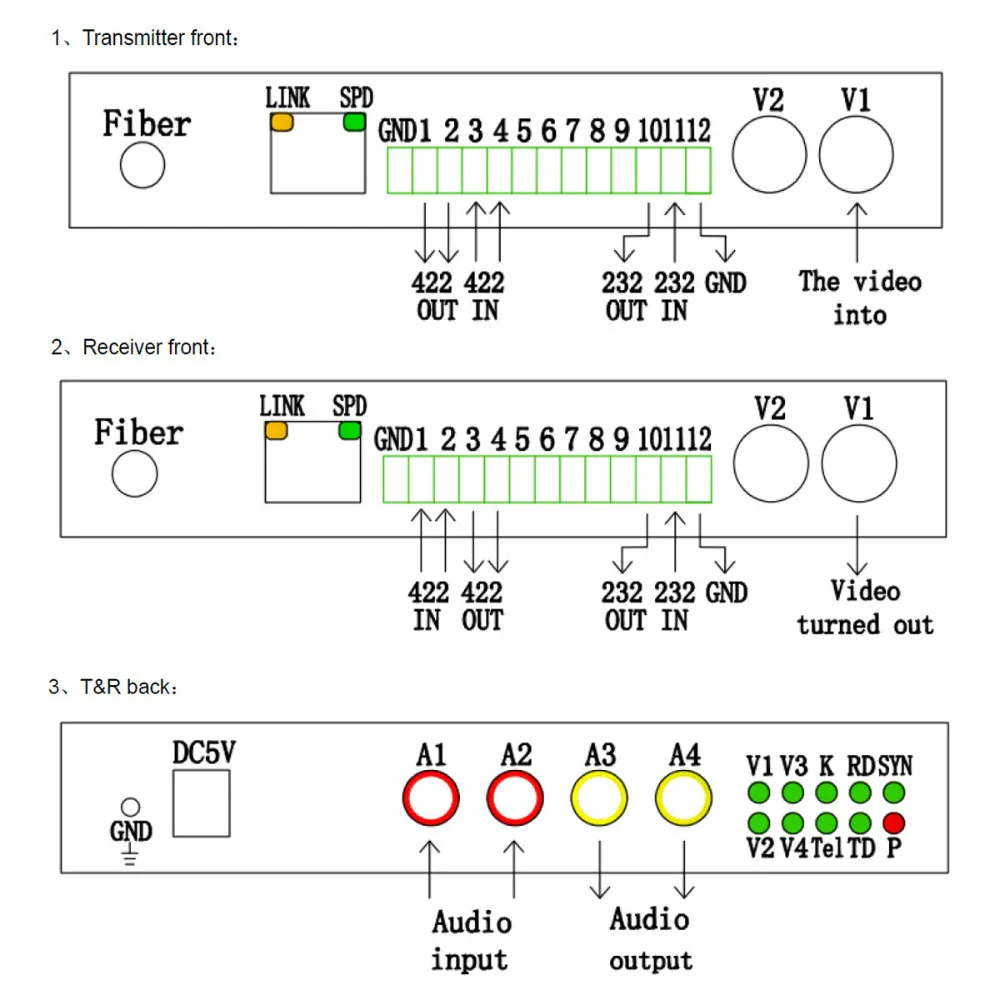

Wiring instructions: Power input: AC100~240V turn DC5V / 2A
